MAGIC
HYBRID
TEES
MATCHED
2.60 to 40.0 GHz
|
|
|
2.60 to 40.0 GHz |
MAGIC HYBRID TEES MATCHED
Waveline broad line of standard hybrid (magic) tees offers a simple solution to many power
dividing and combining requirements. Terminations for use with these tees are shown elsewhere in this
catalog.
These tees provide high isolation and low VSWR as shown in table below. Alternate materials and flanges are
available. See flange section. Finish is instrument gray enamel.
| WG
Size |
Frequency
Range, GHz |
Equivalent
Flange Type |
WG
Mtl. |
VSWR
over Frequency Range GHz |
VSWR over
Indicated Frequency Range GHz |

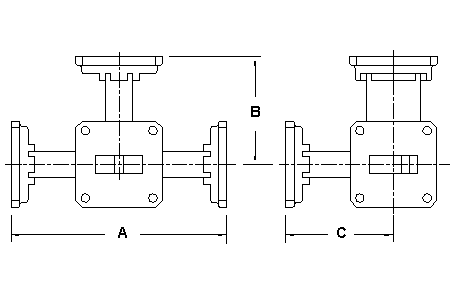

Inches
A |
Inches
B |
Inches
C |
Model
No. |
|
| VSWR | Frequency-Range | |||||||||
| WR-284 | 2.60 to 3.95 | UG-584/U Cover | AL | 2.00 | 1.35 | 2.70 to 3.20 | 9.00 | 4.50 | 4.50 | 258 |
| WR-229 | 3.30 to 4.90 | CMR-229 Style | AL | 2.00 | 1.30 | 3.70 to 4.20 | 5.75 | 2.86 | 2.86 | 2958 |
| WR-187 | 3.95 to 5.85 | UG-407/U Cover | AL | 2.00 | 1.30 | 4.90 to 5.85 | 5.75 | 2.88 | 2.88 | 358 |
| WR-159 | 4.90 to 7.05 | CMR-159 Style | AL | 2.00 | 1.40 | 5.80 to 6.50 | 5.75 | 2.86 | 2.86 | 5958 |
| WR-137 | 5.85 to 8.20 | UG-441/U Cover | AL | 2.00 | 1.50 | 6.40 to 7.0 | 5.88 | 2.94 | 3.44 | 458 |
| WR-112 | 7.05 to 10.0 | UG-138/U Cover | AL | 2.00 | 1.40 | 7.00 to 9.00 | 4.00 | 2.00 | 3.06 | 558 |
| WR-102 | 7.00 to 11.0 | WR-102 Cover | AL | 1.50 | 1.35 | 8.50 to 9.60 | 4.00 | 2.00 | 2.00 | 0258 |
| WR-90 | 8.20 to 12.4 | UG-135/U Cover | AL | 1.50 | 1.35 | 8.50 to 11.5 | 4.00 | 2.00 | 2.00 | 658 |
| WR-75 | 10.0 to 15.0 | WR-75 Cover | AL | 2.00 | 1.50 | 10.5 to 12.5 | 4.00 | 2.00 | 2.00 | 7558 |
| WR-62 | 12.4 to 18.0 | UG1665/U Cover | AL | 1.60 | 1.30 | 12.40 to 16.0 | 2.63 | 1.31 | 1.69 | 758 |
| WR-51 | 15.0 to 22.0 | WR-51 Cover | AL | 2.00 | 1.40 | 17.0 to 21.5 | 2.63 | 1.31 | 1.31 | 5158 |
| WR-42 | 18.0 to 26.5 | UG-595/U Cover | BR | 2.00 | 1.40 | 21.0 to 24.0 | 2.50 | 1.25 | 1.25 | 858 |
| WR-28 | 26.5 to 40.0 | UG-599/U Cover | BR | 2.00 | 1.50 | 26.5 to 34.0 | 2.50 | 1.25 | 1.02 | 1058 |
|
